In this article you will learn:

How to access the admin menu and update your sound Ingenico Lane 3000



Step 1: Access Admin Menu

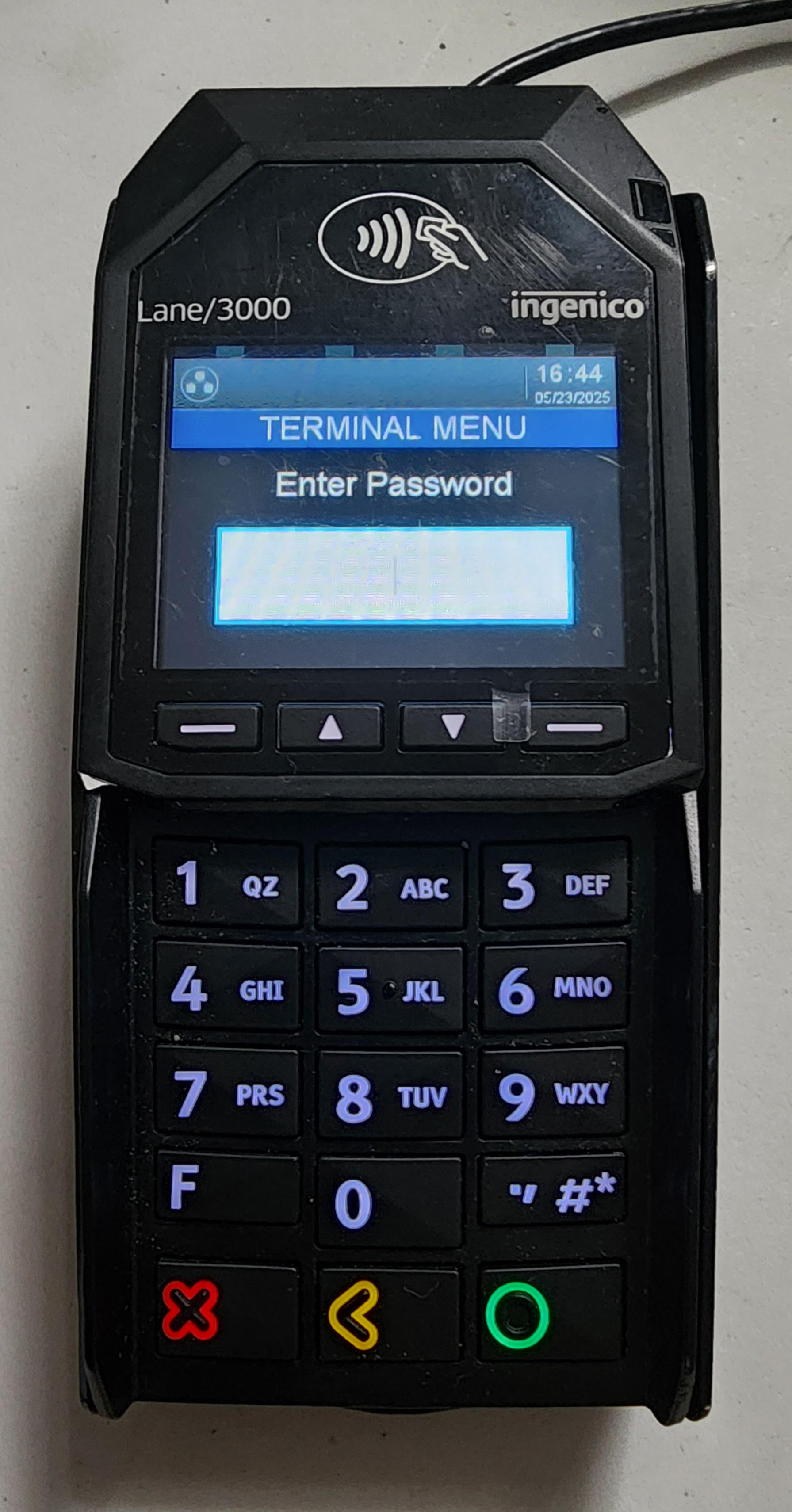

  1. On the keypad press the F button to pull up password entry
  2. Enter the following password (this is case sensitive): CCMerchant
    • To enter letters, you will use the number and press it over and over to change it to a letter until you get the capital or lower case.
      • Example: pressing the number 1 multiple times will go through 1, a, b, c, A, B, C.
    • Once you get the character you want, wait 1 second for it to lock in and show now as *
    • Enter the next letter
  3. Press the Green O Button to log into the menu
  4. Navigating the menu
    1. Navigate with the UP and DOWN arrows
    2. Access a menu with the Green O Button
    3. Return back with the Yellow Arrow button.

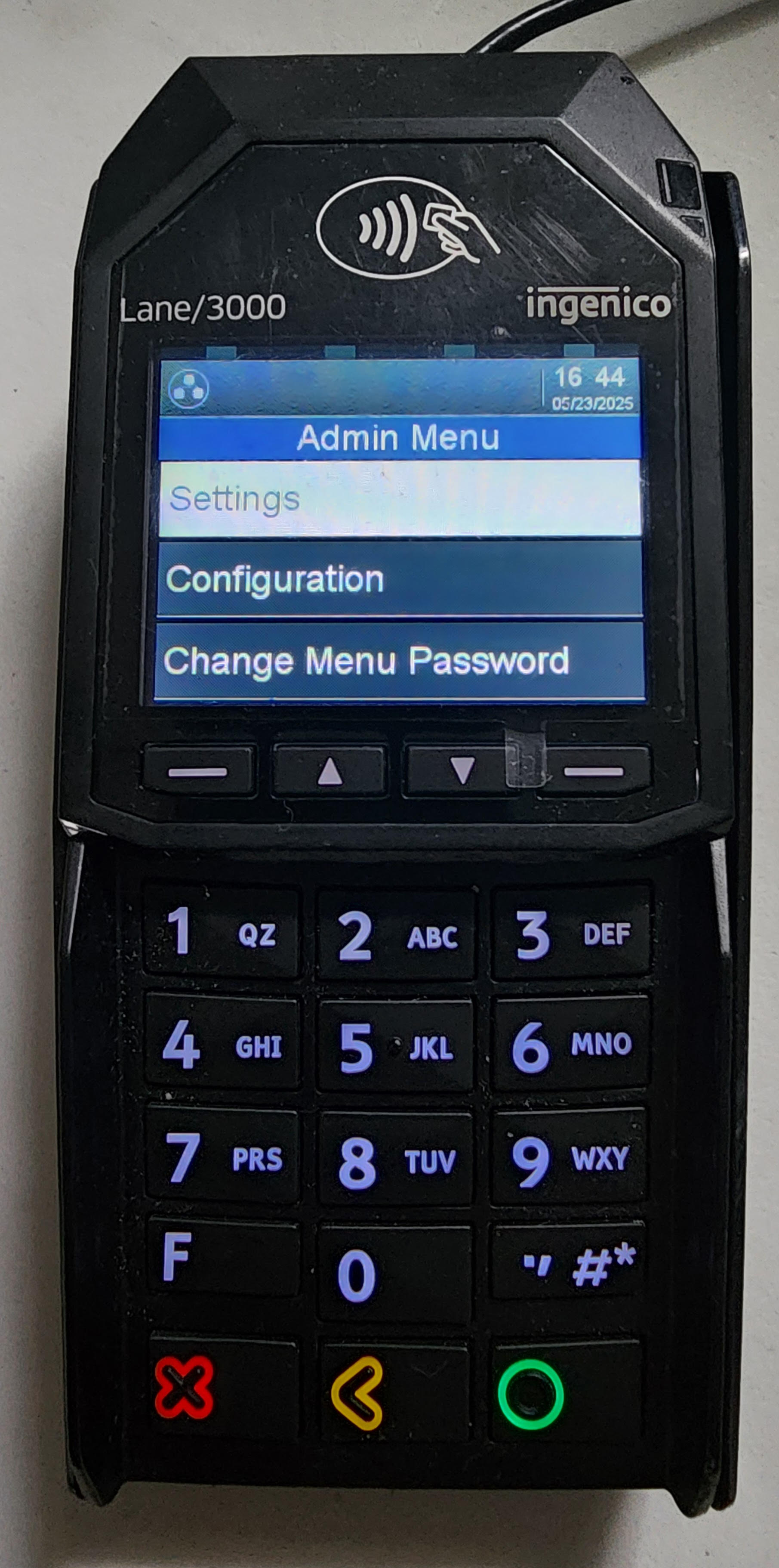

-Password Menu


Back to top

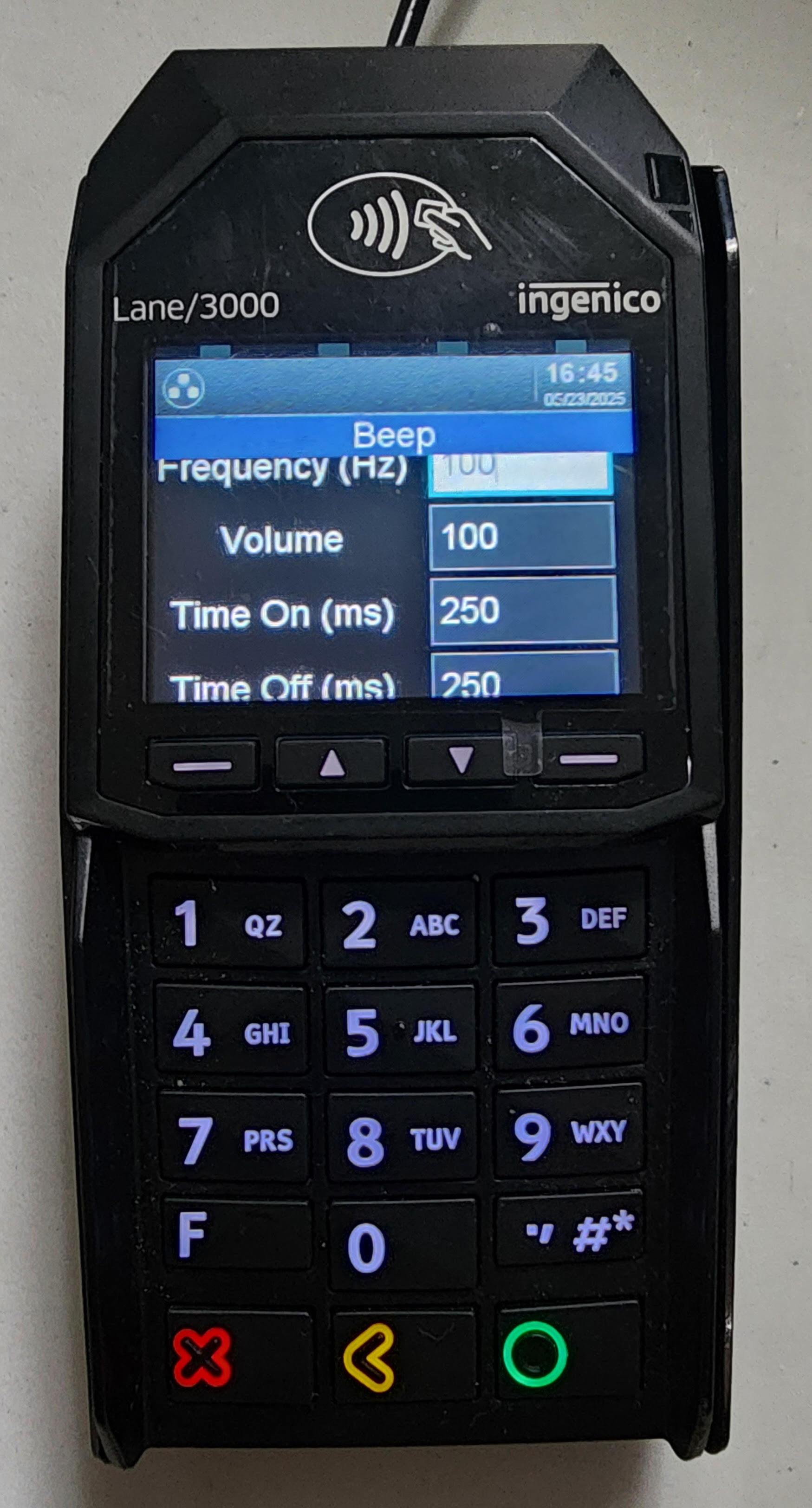

Step 2: Update Beep Settings

  1. Navigate to and choose the Settings Option

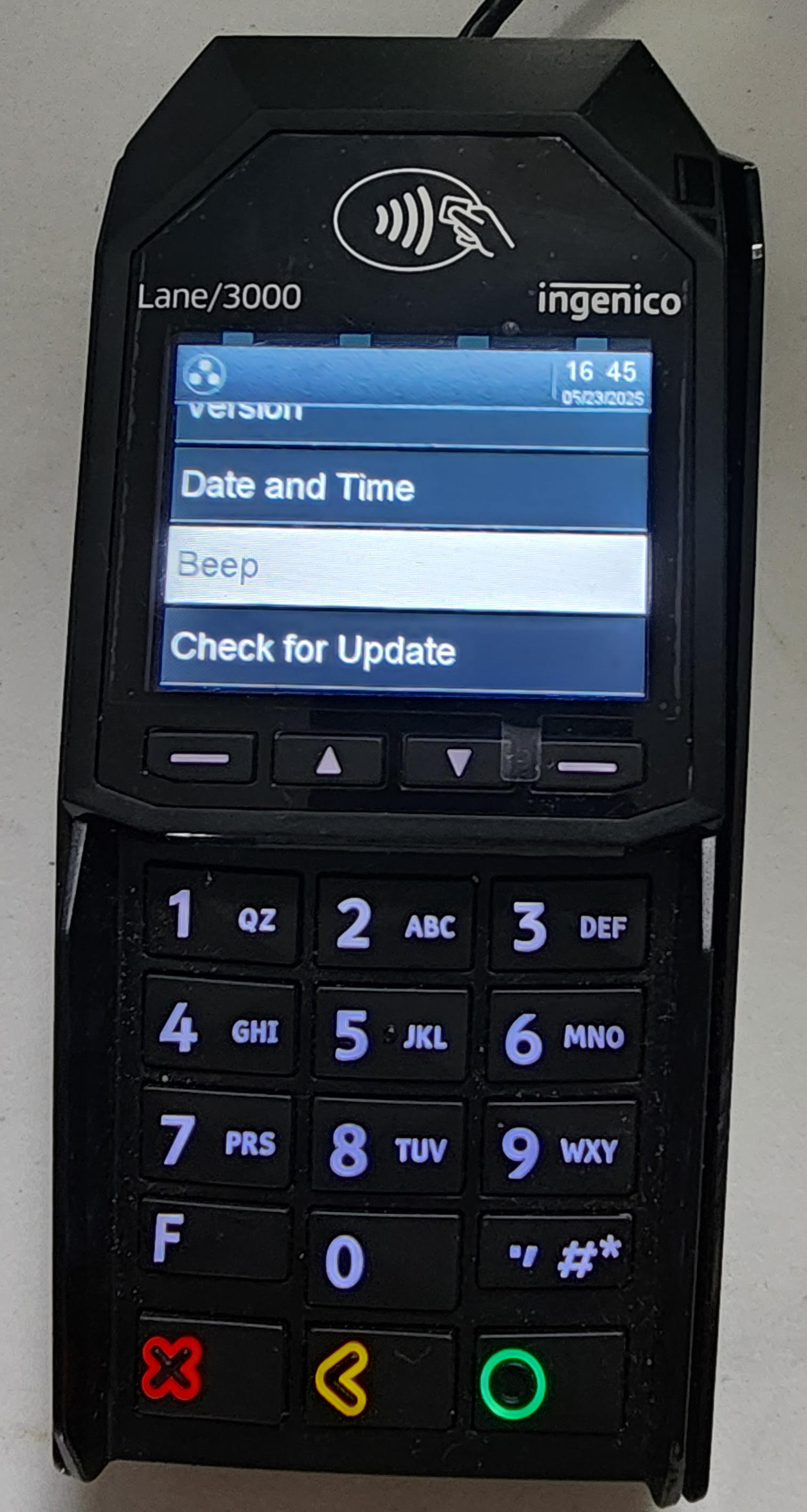

  2. Navigate to and choose the Beep Option
  3. Here you can press the Green O Button on the option you wish to edit, type in the number, and press the Green O Button again to lock in the change
  4. When completed, you can press the Red X Button multiple times to return to the normal screen.


Parameter NameDefault ValueRangeDescription
Frequency (Hz)10020 - 20,000Controls the pitch of the beep.
Volume1001 - 100Controls the volume of the beep, as a percentage.
Time On (ms)25010 - 5.000Controls the length of each single beep.
Time Off (ms)25010 - 5,000Controls the length of time between each beep.


-Admin Menu

-Settings Menu

- Beep Settings


Back to top
