In this article you will learn how to use and troubleshoot your Epson M30 Thermal Printer

Front Lights
- Power Light: Should be on and solid light at all times when powered on
- Error light: Will illuminate if there is an issue with the printer
- Paper out: Will illuminate when low on paper, out of paper, or noted during other troubleshooting steps
- Ethernet: Used for internet hardline connections
  - Will flash when the device is connecting and trying to pull an ip address from the router
  - When live and connected the light will be solid
- Wi-Fi- Used for internet Wi-Fi connections
  - Will flash when the device is connecting and trying to pull an ip address from the router
  - When live and connected the light will be solid
Top Buttons
- Power button: Used to turn the printer on and off
- Feed button : Used to manually feed paper and interact with the printer during troubleshooting steps
Bottom Connections
- Power: The power cable will plug into this spot
- Internet: Ethernet cable plugs in here for hardline connections
- Cash drawer cable: The phone cable rj11 connector will plug here if a cash drawer is used for your device
Power supply
- 2 Piece
  - The power brick is a self contained device that converts the electricity from the outlet to a safe to use power source for the printer
  - The L-Shaped power will plug into the power brick to supply electricity to it.

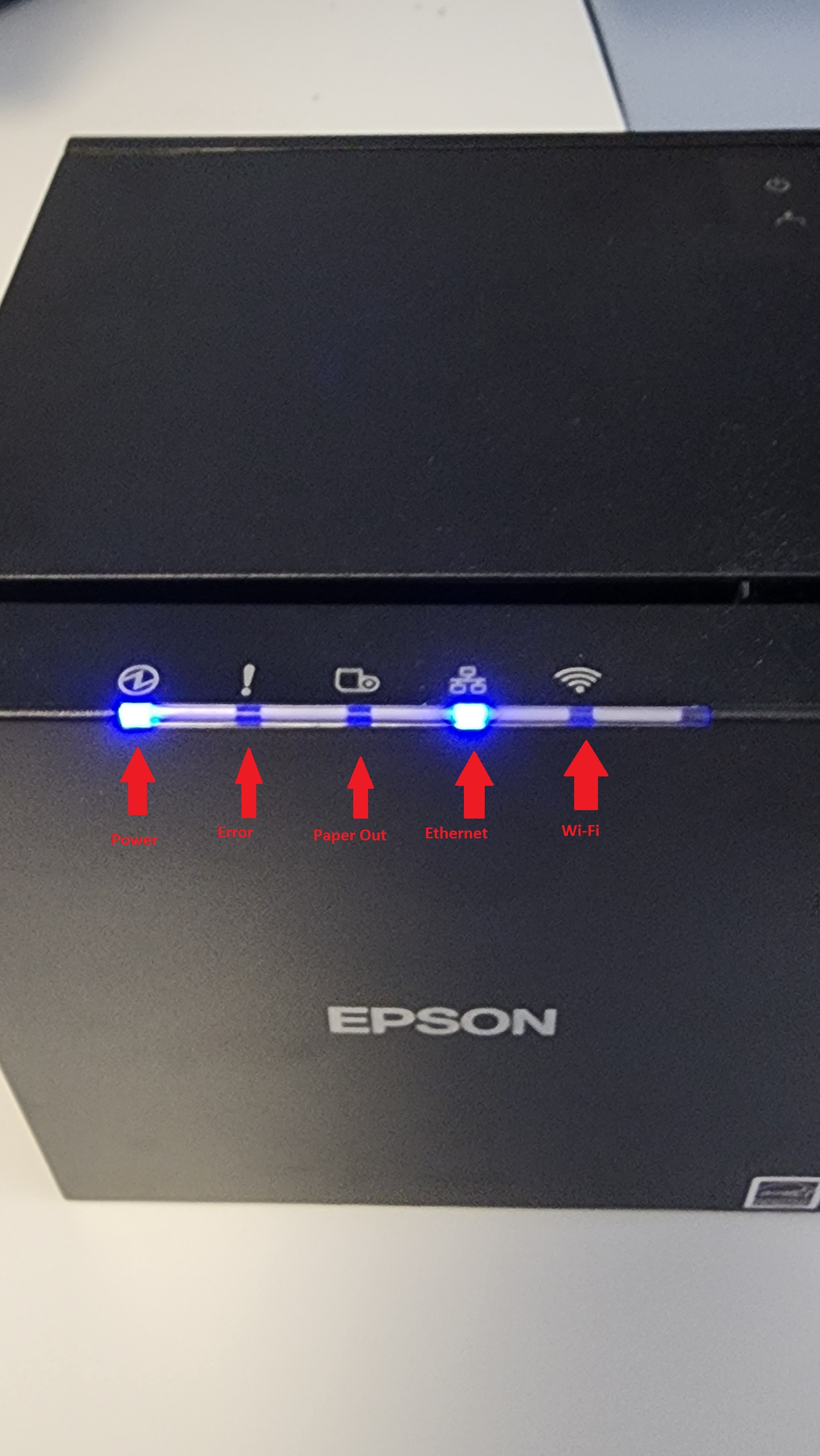

- M30 Front lights

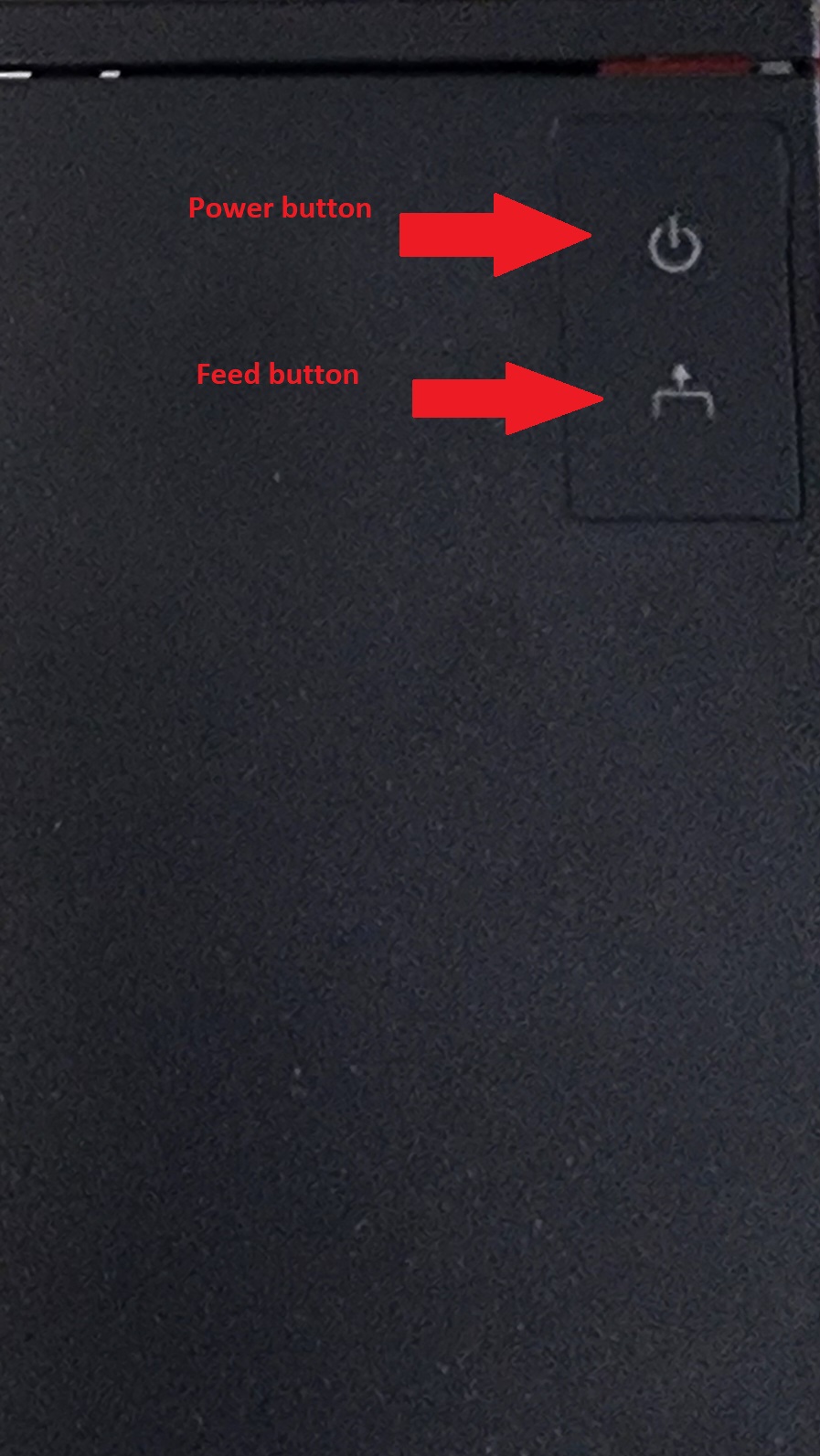

- M30 Top Buttons

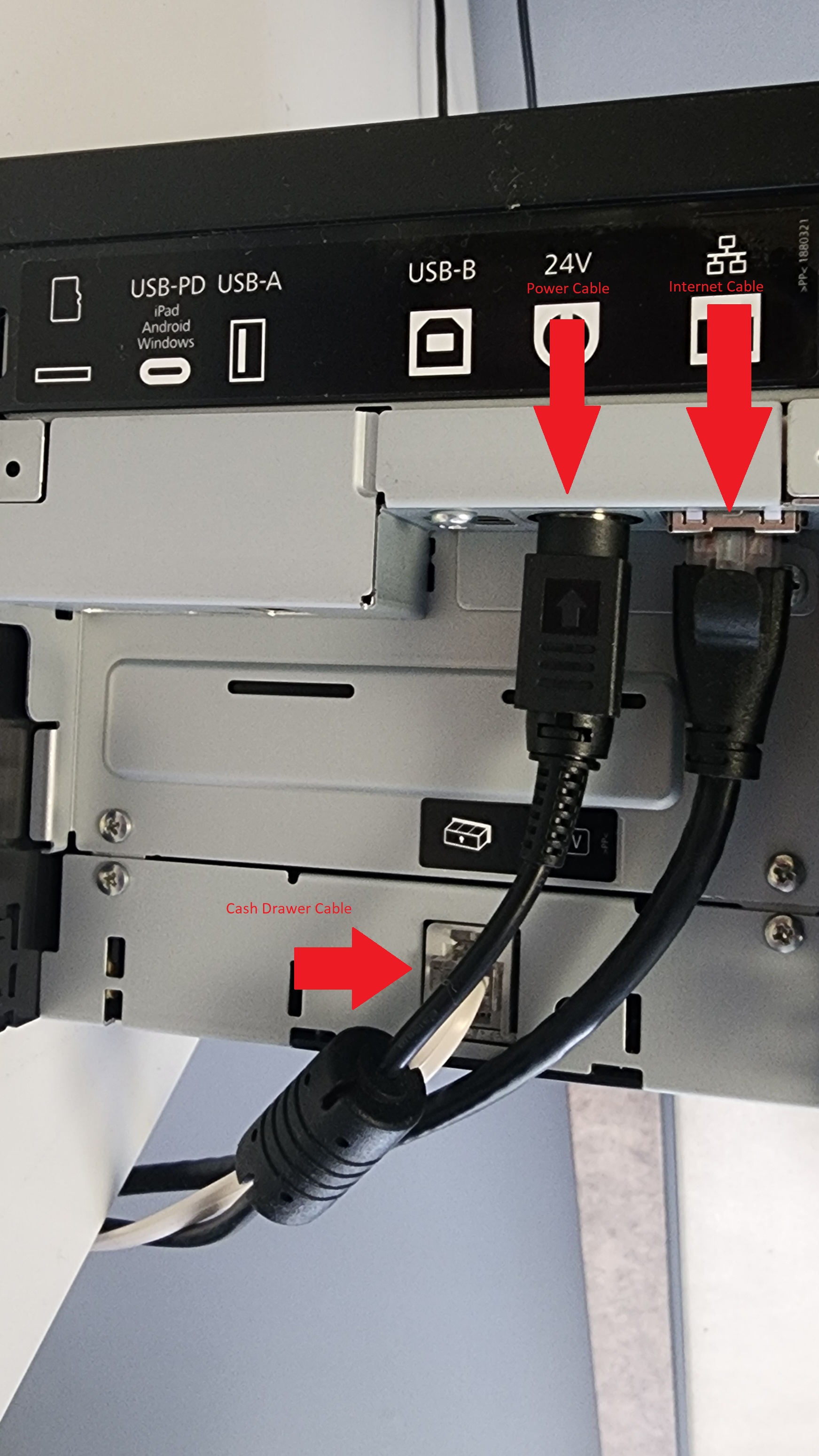

- M30 bottom connectors

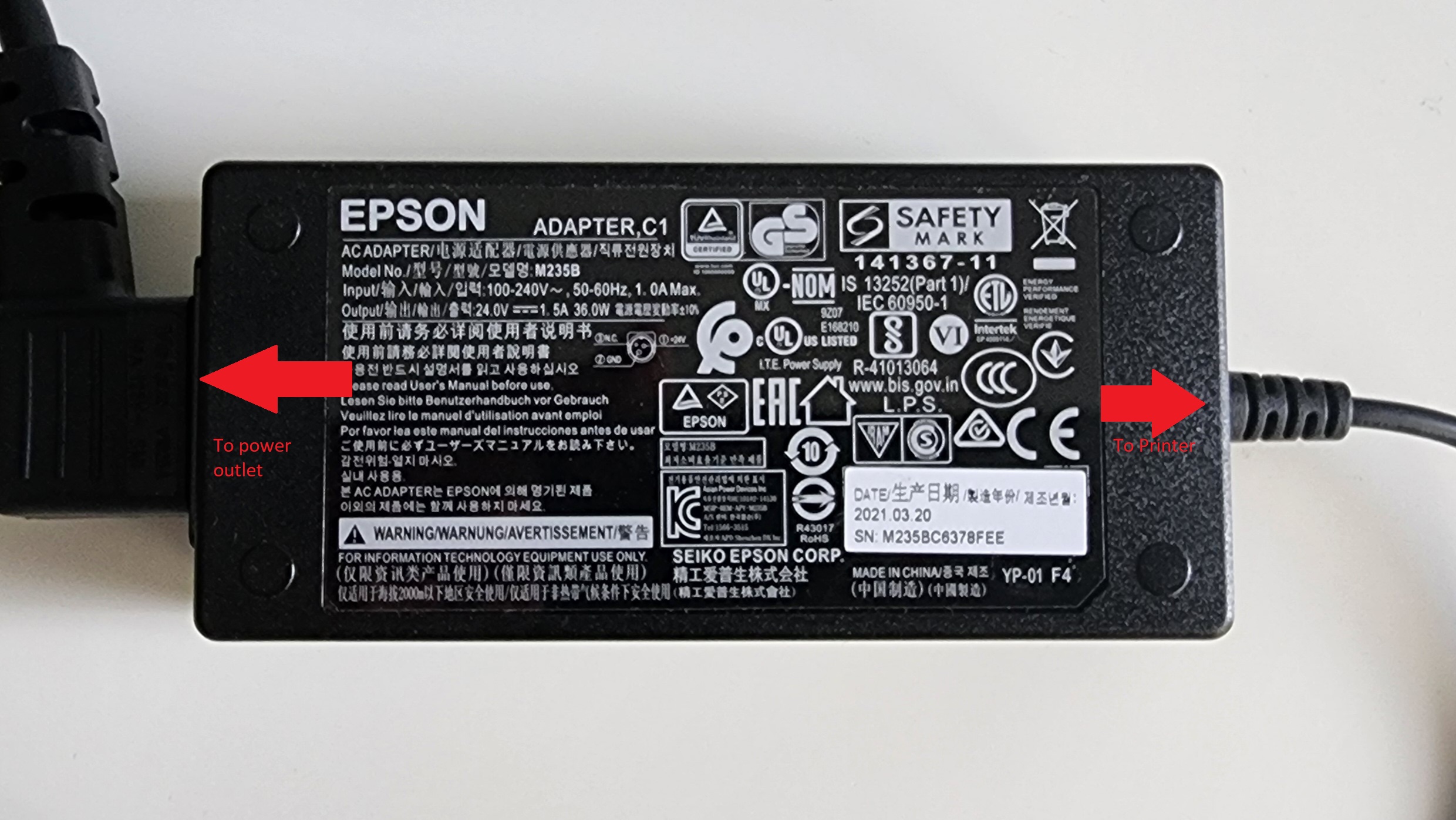

- M30 Power Supply

Ensure the power connector to the power brick is not loose and is fully secure
Check the power connection to the printer to see if it is loose
If there was a recent power loss, try turning the printer on again with the power button
Try to see if the utility is affected simply by plugging another electronic device to that outlet and see if the it will receive power

Try another roll of paper: The ink is on the paper itself and could be a bad treatment from the factory
Ensure the power supply is not plugged into a surge protector. The printer uses electricity to heat the paper and surge protectors throttle the amount of electricity the printer can obtain which will cause bad heating
Clean the printer head: Please consult <tbd>

Close the roll paper cover
While pressing the Feed button, turn on the printer. (Hold down the Feed button until printing starts.)After printing the current print status, a continuing self-test guidance is printed, and the Paper LED flashes
Briefly press the Feed button (less than one second) to continue the self-test. The printer prints using the built-in character set
After “*** completed ***” is printed, the printer is reset and switches to standard mode

Disclaimers
- Do not forcibly pull on the paper
- Do not touch the thermal head or it's surroundings. After printing, these will be hot.

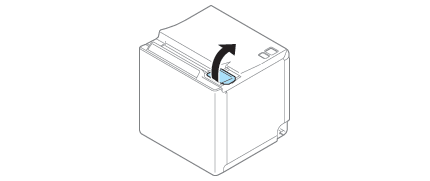

Open up the paper cover and remove the jam

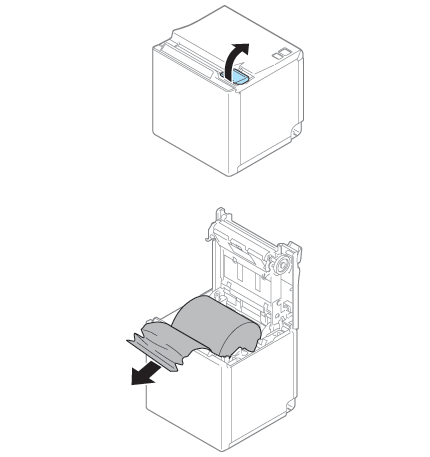

- M30 paper jam

Power light: This is will occur while the computer is turning on or in the middle of an update. Please wait until this finishes
Error Light is on
- Check if paper roll cover is not fully closed
- Check for Paper Jams
- If lots of printing has just occurred back to back, The print head or its surroundings set off the temperature alert and will not allow more printing until it cools down
Error light is flashing
- The printer has encountered an error an issue has stopped working. Turn the printer off and wait 10 seconds before turning it back on. If the error returns to this state, please reach out to the support team
Paper light is on
- Check to see if the roll paper is out or low

Turn off the printer
Wipe dirt off the printer case with a dray or damp cloth
Do not use alcohol, benzine, thinner, or other solvents. Doing so may damage or break the plastic or rubber parts

Disclaimer:

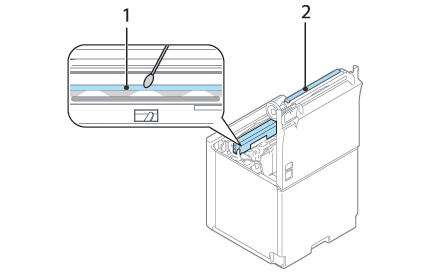

The thermal head after a print job is completed will be very hot. Take care not to touch it and let it cool off before cleaning
Do not damage the thermal head by touching it with your fingers or hard objects
